UHF 4-Channel Wireless Microphone RH860U

※ UHF 640-840MHz band.
※ 2 channels.
※ Microphone optional: hand-held,desktop,headset type.
  • Description
  • Specification

Descriptions of UHF 4-Channel Wireless Microphone RH860U

  • Using UHF640-840MHz band to avert interferencing frequency.
  • All using quartz crystal oscillating circuits so the frequency is very steady.
  • Special design companding circuit, strongly improve S/N ratio.
  • Multilevel quiet control circuit,to avoid interference signal from outside open the mute system.
  • Using excellent dynamic cardioid direct cartridge, the timbre bright and clear.
  • All ready output and input socket,it will be more convenience to connect every equipment.

Specifications of UHF 4-Channel Wireless Microphone RH860U

Model

RH860U

Frequency Range

UHF640-840MHz

Stability

<±20PPM

Dynamic Range

>95dB

T.H.D

<0.5dB

Frequency Response

50Hz-18KHz

Audio Output

0-300mV

Receiver

Power Requirement

DC15-18V

Power Consumption

5W

S/N

>98dB

Image Rejection

>85dB

ACI

>85dB

Sensitivity

>5dBu(SINAD=20dB)

Measurement

480x210x43mm

Microphone

Modulation

FM

Frequency Deviation

±40KHz

Power Requirement

1.5Vx2


Related Products
  • RH-AUDIO Surface Mount Ceiling Speaker RH-T35

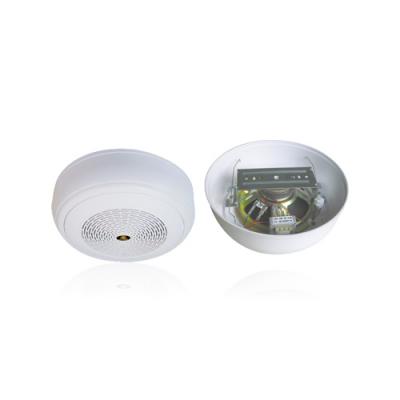

    RH-AUDIO Surface Mount Ceiling Speaker RH-T35

    September 3, 2018The RH-AUDIO Surface Mount Ceiling Speaker RH-T35 surface mount type is designed for some special application where cutting hole in roof is impossible, so the speaker needs to be directly mounted to t...view
  • Multimedia Powered Speaker RH619W

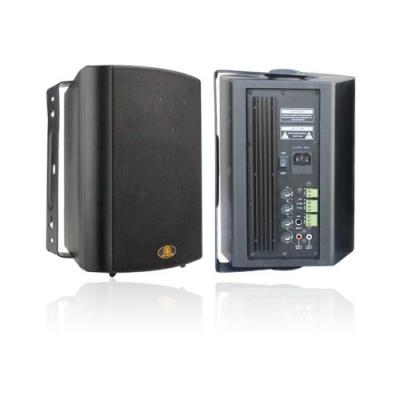

    Multimedia Powered Speaker RH619W

    January 9, 2018The main active loudspeaker "L" with built-in 2-channel "R" stereo digital Class-D amplifiers 30W*2,with Phoenix connector ready to be connected to the sub passive loudspeaker "R".view
  • 6-Zone Integrated Mixing Amplifier

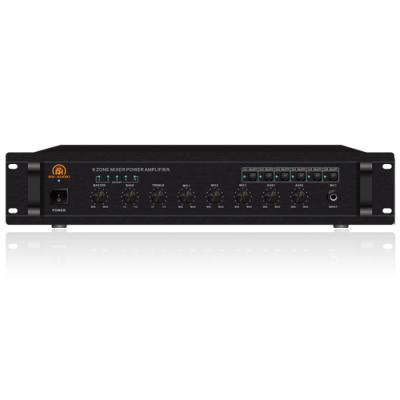

    6-Zone Integrated Mixing Amplifier
