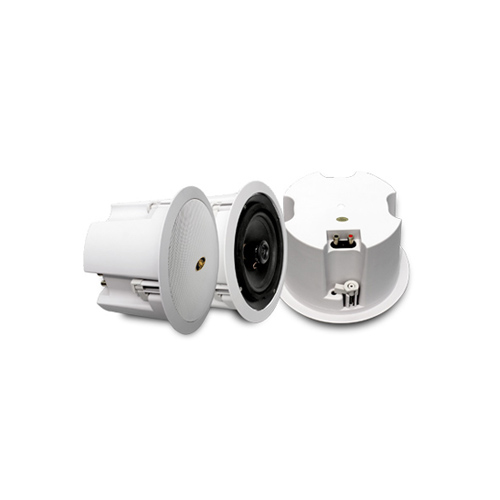

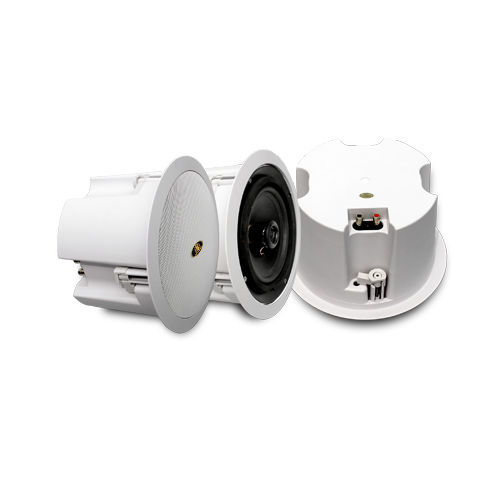

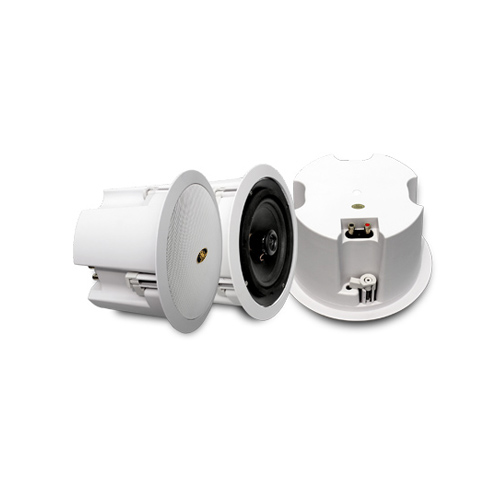

RH-AUDIO In-Ceiling 2-Way Flush Mount Enclosure Speaker

※ Adjustable knob for selection on audio input of 100V/70V/8Ω with a variety of power rates.
※ 2-way coaxial ceiling speaker.
※ Woofer: PP cone.
※ Tweeter: silk dome.
※ Metal back cover, metal grille.
※ Three models with different size.
※ Flush-mount dog ears installation.

Description
Specification

The In-Ceiling 2-Way Flush Mount Enclosure Speaker provides premium performance in background,foreground and music-plus-paging sound system.

This speaker is ideally suited for installation in areas for the sound reproduction of reading announcements, declaring states of emergency, and playing background music such as conference rooms, coffee shops,restaurants,airports,hotels etc.

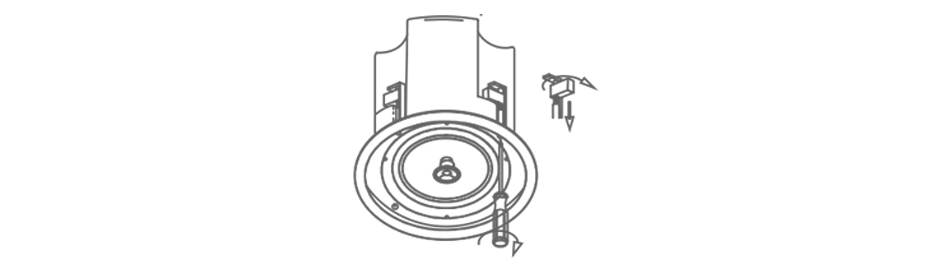

Installation Illustration:

RH-AUDIO In-Ceiling 2-Way Flush Mount Enclosure Speaker Installation Illustration

RH-AUDIO In-Ceiling 2-Way Flush Mount Enclosure Speaker Installation Illustration

Specifications of RH-AUDIO In-Ceiling 2-Way Flush Mount Enclosure Speaker

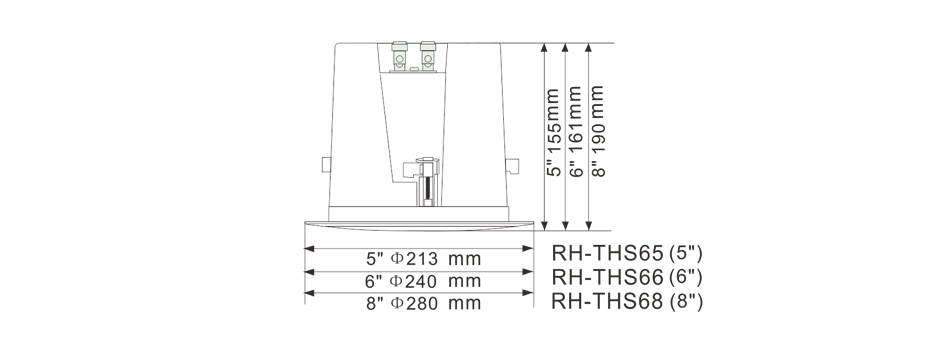

RH-AUDIO In-Ceiling 2-Way Flush Mount Enclosure Speaker Size

Model	RH-THS65	RH-THS66	RH-THS68
Rated Power(W)	20W/10W/5W/2.5W	30W/15W/7.5W/3.8W	40W/20W/10W/5W
Audio Input	70V/100V/8ohm	70V/100V/8ohm	70V/100V/8ohm
Frequency Response	100Hz-20KHz	90Hz-20KHz	80Hz-20KHz
Sensitivity (1w,1n)	89±3dB	92±3dB	96±3dB
Dimensions (mm)	Ø213*155mm	Ø240*161mm	Ø280*190mm
Cutting Hole	Ø180mm	Ø210mm	Ø250mm
Material	ABS enclosure,metal grille
Net Weight	1.70kg	2.20kg	3.10kg
Speaker Driver	5"1+1"1	6"1+1"1	8"1+1"1

RH-AUDIO In-Ceiling 2-Way Flush Mount Enclosure Speaker

Specifications of RH-AUDIO In-Ceiling 2-Way Flush Mount Enclosure Speaker

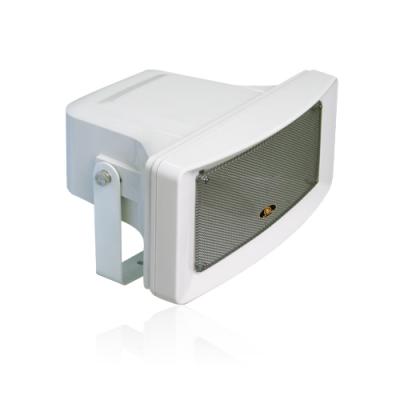

30W Best Commercial Speaker Waterproof RH-HS45
